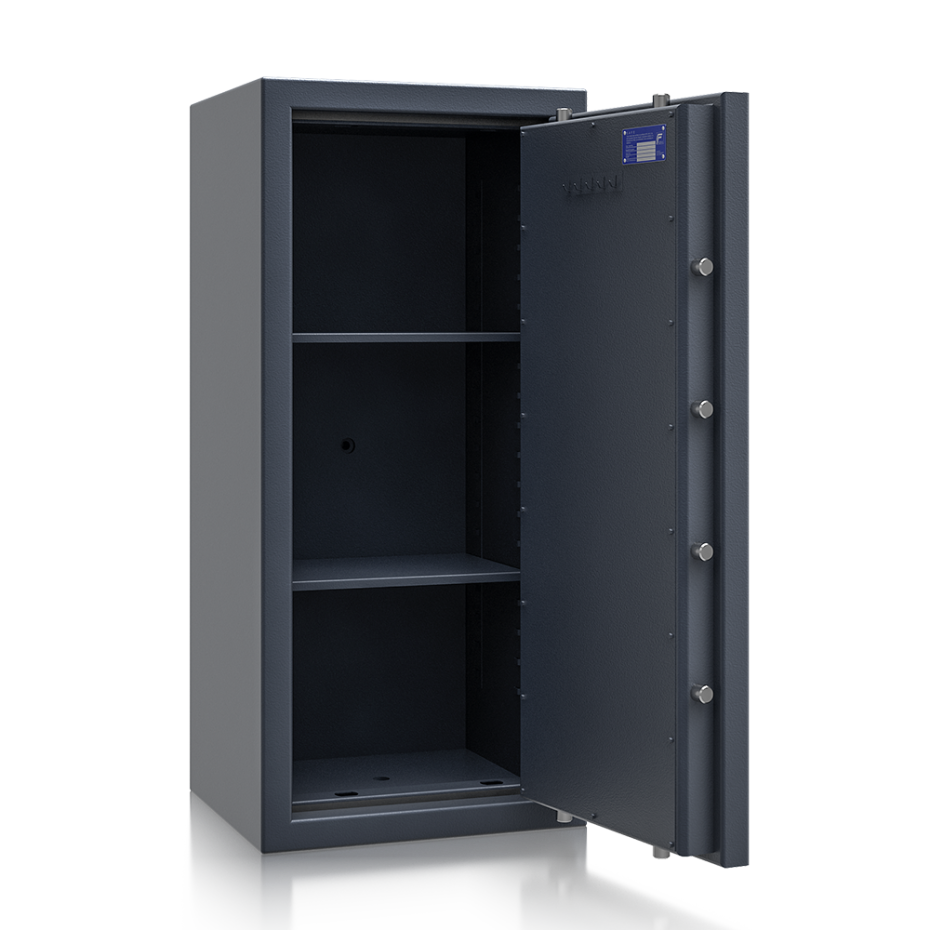

BM II-5 103002.00
MS_pic_grad_II pic_logo_ECBS
Security level: Class II according to EN 1143-1 certified by ECB•S

Design:
Body: Multi-walled
Door: Multi-walled
Hinges: External
Door opening angle: 180°
Handle: protruding approx. 65mm
Mounting holes: 1 bushing in the floor

Locking:
High security double-bit key lock
2 keys (120 mm)

Outer dimensions in mm
Outer dimensions in mm 1200 x 550 x 465
Inner dimensions in mm*
Inner dimensions in mm* 1100 x 440 x 305
Shelves
Shelves 2 pcs
File
File 18 pcs
Content
Content 148 l
Weight
Weight 268 kg
Send inquiry
Colour
Standard 7035
7035
Standard 7024
7024
Against surcharge Specialpainting RAL
Specialpainting RAL
Locks
Standard Double bit lock
Double bit lock
Against surcharge Mechanical combination lock
Mechanical combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Interior fittings
Against surcharge Inner safe
Inner safe
Against surcharge Additional shelf
Additional shelf
Against surcharge Additional bush for anchorage in position designated Ø 13 mm
Additional bush for anchorage in position designated Ø 13 mm
Other equipment
Against surcharge Door hinge left
Door hinge left
Against surcharge Special dowel for fixing in concrete floor B 25 Ø 12 mm
Special dowel for fixing in concrete floor B 25 Ø 12 mm
Downloads
datenblatt_BM II_EN
848,01 KB
Download
Back to top
Articles BM II
BM II-0
MS_pic_grad_II pic_logo_ECBS

External dimensions: 450 x 450 x 465 (HxBxT in mm)
Inner dimensions : 350 x 340 x 305 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 4
Content (liter) : 36
Weight (kg): 109

BM II-1
MS_pic_grad_II pic_logo_ECBS

External dimensions: 550 x 550 x 465 (HxBxT in mm)
Inner dimensions : 450 x 440 x 305 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 7
Content (liter) : 60
Weight (kg): 145

BM II-2
MS_pic_grad_II pic_logo_ECBS

External dimensions: 700 x 550 x 465 (HxBxT in mm)
Inner dimensions : 600 x 440 x 305 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 9
Content (liter) : 81
Weight (kg): 173

BM II-3
MS_pic_grad_II pic_logo_ECBS

External dimensions: 850 x 550 x 465 (HxBxT in mm)
Inner dimensions : 750 x 440 x 305 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 10
Content (liter) : 101
Weight (kg): 201

BM II-4
MS_pic_grad_II pic_logo_ECBS

External dimensions: 1050 x 550 x 465 (HxBxT in mm)
Inner dimensions : 950 x 440 x 305 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 15
Content (liter) : 127
Weight (kg): 240

BM II-5
MS_pic_grad_II pic_logo_ECBS

External dimensions: 1200 x 550 x 465 (HxBxT in mm)
Inner dimensions : 1100 x 440 x 305 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 18
Content (liter) : 148
Weight (kg): 268

BM II-6
MS_pic_grad_II pic_logo_ECBS

External dimensions: 1350 x 550 x 465 (HxBxT in mm)
Inner dimensions : 1250 x 440 x 305 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 20
Content (liter) : 168
Weight (kg): 297
