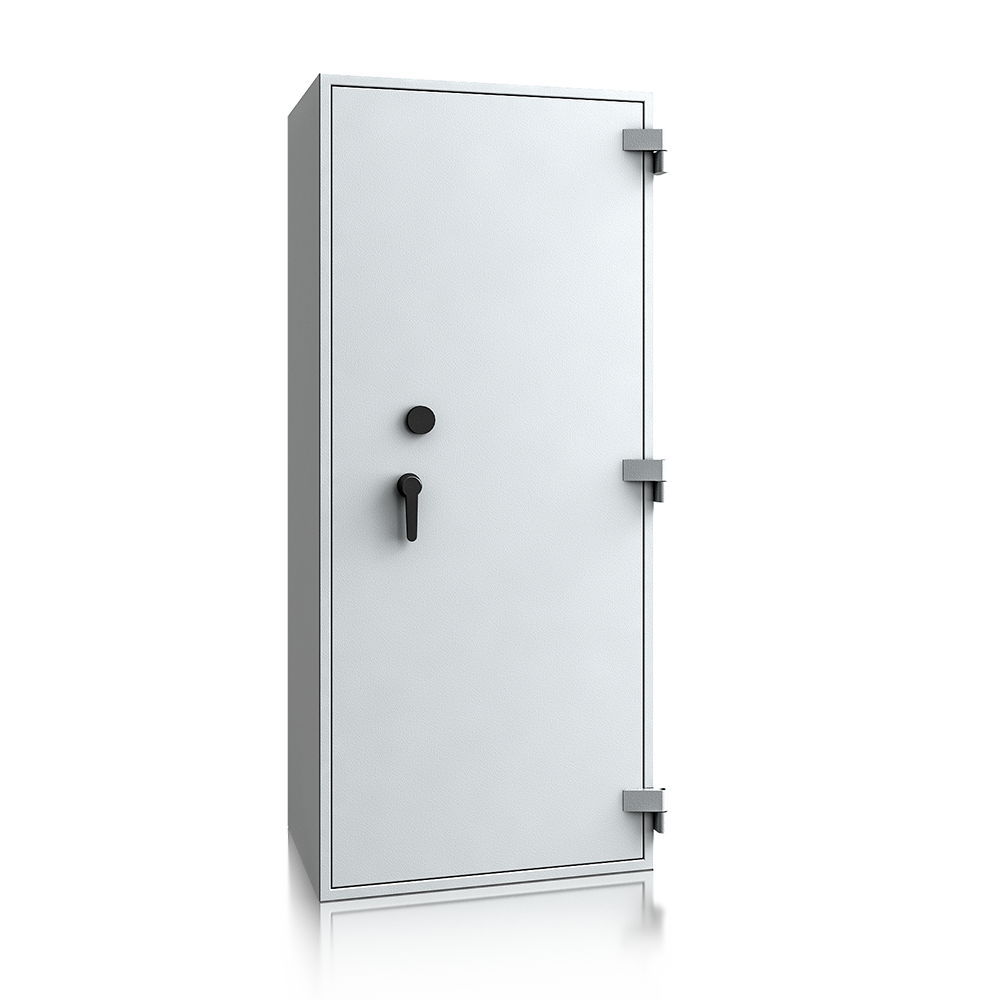

EW III-187 101053.00
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS
Security level: Class III according to EN 1143-1 certified by ECB•S and VdS

Design:
Body: Double-walled with special reinforcement
Door: Multiple-walled
Hinges: External
Door opening angle: 145°
Handle: Protruding 65 mm
Mounting holes: 2 bushings in the floor

Locking:
High security double-bit key lock
3 keys (190 mm)

Outer dimensions in mm
Outer dimensions in mm 1870 x 810 x 540
Inner dimensions in mm*
Inner dimensions in mm* 1790 x 730 x 380
Shelves
Shelves 4 pcs
File
File 36 pcs
Content
Content 497 l
Weight
Weight 940 kg
Send inquiry
Colour
Standard 7035
7035
Against surcharge Specialpainting RAL
Specialpainting RAL
Interior fittings
Against surcharge Inner safe
Inner safe
Against surcharge Additional shelf
Additional shelf
Against surcharge Additional bush for anchorage in position designated Ø 13 mm
Additional bush for anchorage in position designated Ø 13 mm
Other equipment
Against surcharge Door hinge left
Door hinge left
Against surcharge EMA Components
EMA Components
Against surcharge Special dowel for fixing in concrete floor B 25 Ø 12 mm
Special dowel for fixing in concrete floor B 25 Ø 12 mm
Downloads
109_datenblatt_EW_III_EN
2,18 MB
Download
Back to top
Articles EW III
EW III-62
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS

External dimensions: 620 x 570 x 520 (HxBxT in mm)
Inner dimensions : 540 x 490 x 360 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 6
Content (liter) : 95
Weight (kg): 305

EW III-84
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS

External dimensions: 840 x 570 x 520 (HxBxT in mm)
Inner dimensions : 760 x 490 x 360 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 12
Content (liter) : 134
Weight (kg): 380

EW III-105
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS

External dimensions: 1050 x 570 x 520 (HxBxT in mm)
Inner dimensions : 970 x 490 x 360 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 12
Content (liter) : 171
Weight (kg): 465

EW III-120
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS

External dimensions: 1200 x 570 x 520 (HxBxT in mm)
Inner dimensions : 1120 x 490 x 360 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 18
Content (liter) : 198
Weight (kg): 515

EW III-156
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS

External dimensions: 1560 x 810 x 540 (HxBxT in mm)
Inner dimensions : 1480 x 730 x 380 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 36
Content (liter) : 411
Weight (kg): 820

EW III-187
MS_pic_grad_III pic_logo_VDS pic_logo_ECBS

External dimensions: 1870 x 810 x 540 (HxBxT in mm)
Inner dimensions : 1790 x 730 x 380 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 36
Content (liter) : 497
Weight (kg): 940
