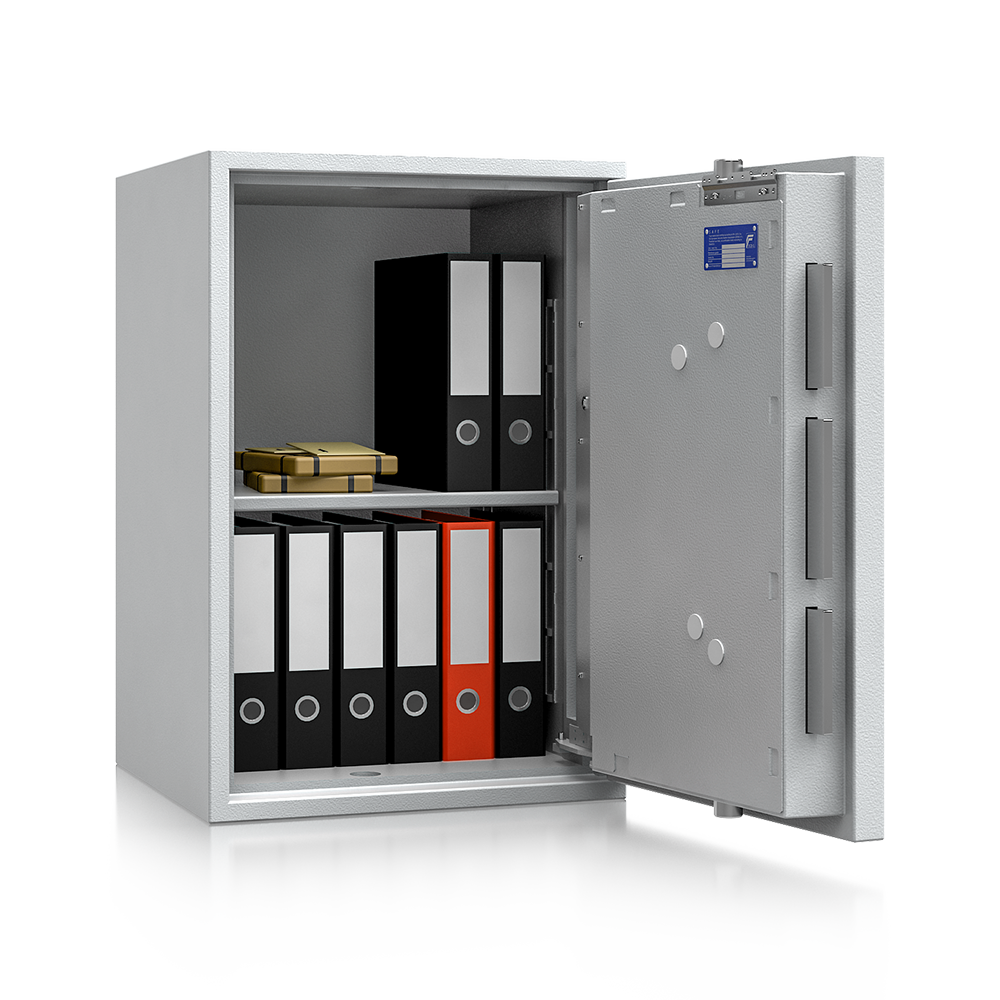

EW IV-84 101104.00
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS
Security level: Class IV according to EN 1143-1 certified by ECB•S and VdS

Design:
Body: Double-walled with special reinforcement
Door: Multiple-walled
Hinges: External
Door opening angle: 145°
Handle: Protruding 65 mm
Mounting holes: 2 bushings in the floor
Prepared for EMA installation

Locking:
2 High security double-bit key locks
each 3 keys (190 mm)

Outer dimensions in mm
Outer dimensions in mm 840 x 570 x 520
Inner dimensions in mm*
Inner dimensions in mm* 760 x 490 x 360
Shelves
Shelves 1 pcs
File
File 12 pcs
Content
Content 134 l
Weight
Weight 395 kg
Send inquiry
Colour
Standard 7035
7035
Against surcharge Specialpainting RAL
Specialpainting RAL
Interior fittings
Against surcharge Inner safe
Inner safe
Against surcharge Additional shelf
Additional shelf
Against surcharge Additional bush for anchorage in position designated Ø 13 mm
Additional bush for anchorage in position designated Ø 13 mm
Other equipment
Against surcharge Door hinge left
Door hinge left
Against surcharge EMA Components
EMA Components
Against surcharge Special dowel for fixing in concrete floor B 25 Ø 12 mm
Special dowel for fixing in concrete floor B 25 Ø 12 mm
Downloads
110_datenblatt_EW_IV_EN
1,72 MB
Download
Back to top
Articles EW IV
EW IV-62
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS

External dimensions: 620 x 570 x 520 (HxBxT in mm)
Inner dimensions : 540 x 490 x 360 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 6
Content (liter) : 95
Weight (kg): 310

EW IV-84
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS

External dimensions: 840 x 570 x 520 (HxBxT in mm)
Inner dimensions : 760 x 490 x 360 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 12
Content (liter) : 134
Weight (kg): 395

EW IV-105
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS

External dimensions: 1050 x 570 x 520 (HxBxT in mm)
Inner dimensions : 970 x 490 x 360 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 12
Content (liter) : 171
Weight (kg): 480

EW IV-120
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS

External dimensions: 1200 x 570 x 520 (HxBxT in mm)
Inner dimensions : 1120 x 490 x 360 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 18
Content (liter) : 198
Weight (kg): 535

EW IV-156
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS

External dimensions: 1560 x 810 x 540 (HxBxT in mm)
Inner dimensions : 1480 x 730 x 380 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 36
Content (liter) : 411
Weight (kg): 830

EW IV-187
MS_pic_grad_IV pic_logo_VDS pic_logo_ECBS

External dimensions: 1870 x 810 x 540 (HxBxT in mm)
Inner dimensions : 1790 x 730 x 380 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 36
Content (liter) : 497
Weight (kg): 960
