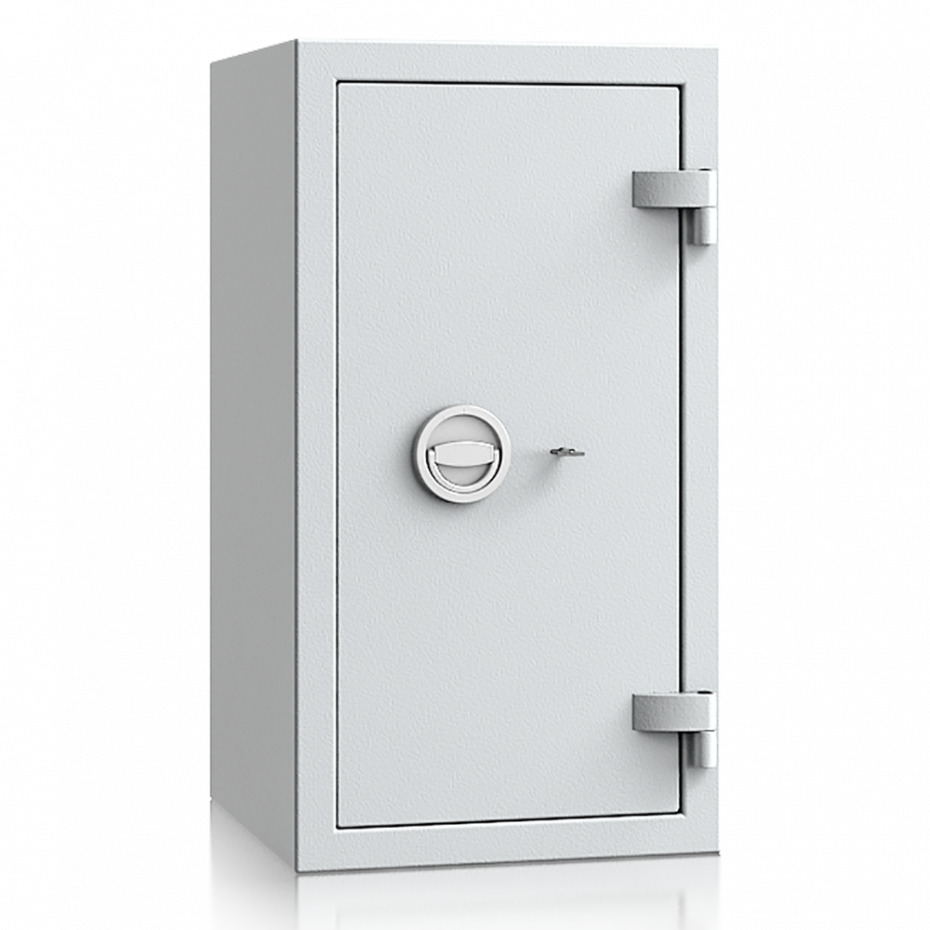

GA 78 100181.00
MS_pic_grad_I pic_logo_ECBS
Security level: Class I according to EN 1143-1 certified by ECB•S

Design:
Body: Double-walled
Door: Multi-walled
Hinges: External
Door opening angle: 180°
Handle: Up to a height of 950 mm with a folding handle, from a height of 1130 mm with a hanging handle (metal), protruding approx. 65mm
Mounting holes: 1 bushing in the floor

Locking:
High security double-bit key lock
2 keys (95 mm)

Outer dimensions in mm
Outer dimensions in mm 780 x 420 x 445
Inner dimensions in mm*
Inner dimensions in mm* 730 x 360 x 335
Shelves
Shelves 1 pcs
File
File 8 pcs
Content
Content 88 l
Weight
Weight 91 kg
Send inquiry
Colour
Standard 7035
7035
Against surcharge Specialpainting RAL
Specialpainting RAL
Locks
Standard Double bit lock
Double bit lock
Against surcharge Double bit lock
Double bit lock
Against surcharge Electronic combination lock
Electronic combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Against surcharge Mechanical combination lock
Mechanical combination lock
Interior fittings
Against surcharge Inner safe
Inner safe
Against surcharge Additional shelf
Additional shelf
Against surcharge Additional bush for anchorage in position designated Ø 13 mm
Additional bush for anchorage in position designated Ø 13 mm
Other equipment
Against surcharge Door hinge left
Door hinge left
Against surcharge Special dowel for fixing in concrete floor B 25 Ø 12 mm
Special dowel for fixing in concrete floor B 25 Ø 12 mm
Downloads
101_datenblatt_GA_EN
1,62 MB
Download
Back to top
Articles GA
GA 35
MS_pic_grad_I pic_logo_ECBS

External dimensions: 350 x 390 x 265 (HxBxT in mm)
Inner dimensions : 300 x 330 x 155 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 0
Content (liter) : 15
Weight (kg): 41

GA 43
MS_pic_grad_I pic_logo_ECBS

External dimensions: 430 x 420 x 445 (HxBxT in mm)
Inner dimensions : 380 x 360 x 335 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 4
Content (liter) : 46
Weight (kg): 61

GA 60
MS_pic_grad_I pic_logo_ECBS

External dimensions: 600 x 420 x 445 (HxBxT in mm)
Inner dimensions : 550 x 360 x 335 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 6
Content (liter) : 66
Weight (kg): 76

GA 78
MS_pic_grad_I pic_logo_ECBS

External dimensions: 780 x 420 x 445 (HxBxT in mm)
Inner dimensions : 730 x 360 x 335 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 8
Content (liter) : 88
Weight (kg): 91

GA 95
MS_pic_grad_I pic_logo_ECBS

External dimensions: 950 x 420 x 445 (HxBxT in mm)
Inner dimensions : 900 x 360 x 335 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 10
Content (liter) : 109
Weight (kg): 107

GA 113
MS_pic_grad_I pic_logo_ECBS

External dimensions: 1130 x 570 x 485 (HxBxT in mm)
Inner dimensions : 1080 x 510 x 375 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 18
Content (liter) : 207
Weight (kg): 153

GA 148
MS_pic_grad_I pic_logo_ECBS

External dimensions: 1480 x 570 x 485 (HxBxT in mm)
Inner dimensions : 1430 x 510 x 375 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 24
Content (liter) : 273
Weight (kg): 189

GA 183
MS_pic_grad_I pic_logo_ECBS

External dimensions: 1830 x 570 x 485 (HxBxT in mm)
Inner dimensions : 1780 x 510 x 375 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 30
Content (liter) : 340
Weight (kg): 225

GA 113 /2
MS_pic_grad_I pic_logo_ECBS

External dimensions: 1130 x 1245 x 485 (HxBxT in mm)
Inner dimensions : 1080 x 1185 x 375 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 45
Content (liter) : 480
Weight (kg): 268

GA 130 /2
MS_pic_grad_I pic_logo_ECBS

External dimensions: 1300 x 1245 x 485 (HxBxT in mm)
Inner dimensions : 1250 x 1185 x 375 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 51
Content (liter) : 555
Weight (kg): 296

GA 183/2
MS_pic_grad_I pic_logo_ECBS

External dimensions: 1830 x 1245 x 600 (HxBxT in mm)
Inner dimensions : 1780 x 1185 x 490 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 75
Content (liter) : 1034
Weight (kg): 415
