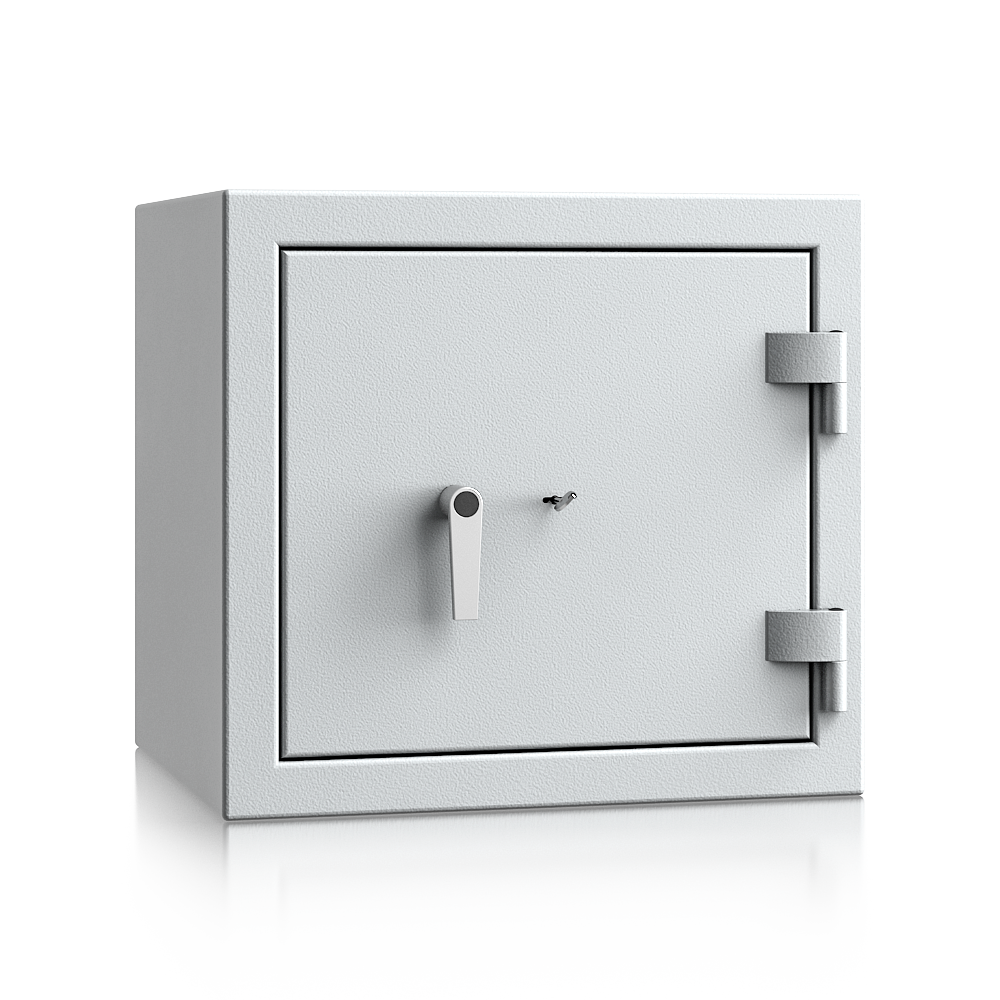

GN 60 S 520418.00
MS_pic_grad_VDMA_B pic_logo_VDMA
Security level: S2 according to EN 14450 B according to VDMA 24992 (Conditions May ´95)

Design:
Body: Double-walled
Door: Double-walled
Hinges: External
Door opening angle: 180°
Handle: Protruding 65 mm
Mounting holes: 2 bushings in the floor, 2 in backwall

Locking:
High security double-bit key lock
2 keys (65 mm)

Outer dimensions in mm
Outer dimensions in mm 600 x 650 x 550
Inner dimensions in mm*
Inner dimensions in mm* 480 x 518 x 373
Shelves
Shelves 1 pcs
File
File 6 pcs
Content
Content 93 l
Weight
Weight 300 kg
Send inquiry
Colour
Standard 7035
7035
Against surcharge Specialpainting RAL
Specialpainting RAL
Locks
Standard Double bit lock
Double bit lock
Against surcharge Mechanical combination lock
Mechanical combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Interior fittings
Against surcharge Inner safe
Inner safe
Against surcharge Additional shelf
Additional shelf
Against surcharge Additional bush for anchorage in position designated Ø 13 mm
Additional bush for anchorage in position designated Ø 13 mm
Other equipment
Against surcharge Shelf for hanging files
Shelf for hanging files
Against surcharge Suspension file on telescopic rails
Suspension file on telescopic rails
Against surcharge Door hinge left
Door hinge left
Against surcharge Special dowel for fixing in concrete floor B 25 Ø 12 mm
Special dowel for fixing in concrete floor B 25 Ø 12 mm
Downloads
525_datenblatt_GN_EN
1,64 MB
Download
Back to top
Articles GN
GN 60
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 600 x 650 x 550 (HxBxT in mm)
Inner dimensions : 480 x 518 x 373 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 6
Content (liter) : 93
Weight (kg): 200

GN 60 S
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 600 x 650 x 550 (HxBxT in mm)
Inner dimensions : 480 x 518 x 373 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 6
Content (liter) : 93
Weight (kg): 300

GN 80
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 800 x 650 x 550 (HxBxT in mm)
Inner dimensions : 680 x 518 x 373 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 6
Content (liter) : 131
Weight (kg): 200

GN 80 S
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 800 x 650 x 550 (HxBxT in mm)
Inner dimensions : 680 x 518 x 373 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 6
Content (liter) : 131
Weight (kg): 300

GN 120
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1200 x 650 x 550 (HxBxT in mm)
Inner dimensions : 1080 x 518 x 373 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 18
Content (liter) : 209
Weight (kg): 200

GN 120 S
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1200 x 650 x 550 (HxBxT in mm)
Inner dimensions : 1080 x 518 x 373 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 18
Content (liter) : 209
Weight (kg): 300

GN 150
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1500 x 650 x 550 (HxBxT in mm)
Inner dimensions : 1380 x 518 x 373 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 18
Content (liter) : 267
Weight (kg): 200

GN 150 S
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1500 x 650 x 550 (HxBxT in mm)
Inner dimensions : 1380 x 518 x 373 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 18
Content (liter) : 267
Weight (kg): 300

GN 160
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1600 x 650 x 550 (HxBxT in mm)
Inner dimensions : 1480 x 518 x 373 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 24
Content (liter) : 286
Weight (kg): 300

GN 180
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1800 x 650 x 550 (HxBxT in mm)
Inner dimensions : 1680 x 518 x 373 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 26
Content (liter) : 325
Weight (kg): 350

GN 180 S
MS_pic_grad_VDMA_B pic_logo_VDMA

External dimensions: 1800 x 1000 x 550 (HxBxT in mm)
Inner dimensions : 1680 x 868 x 373 (HxBxT in mm)
Shelves: 4
Door: 2 Winged
Quantity folder: 48
Content (liter) : 544
Weight (kg): 375
