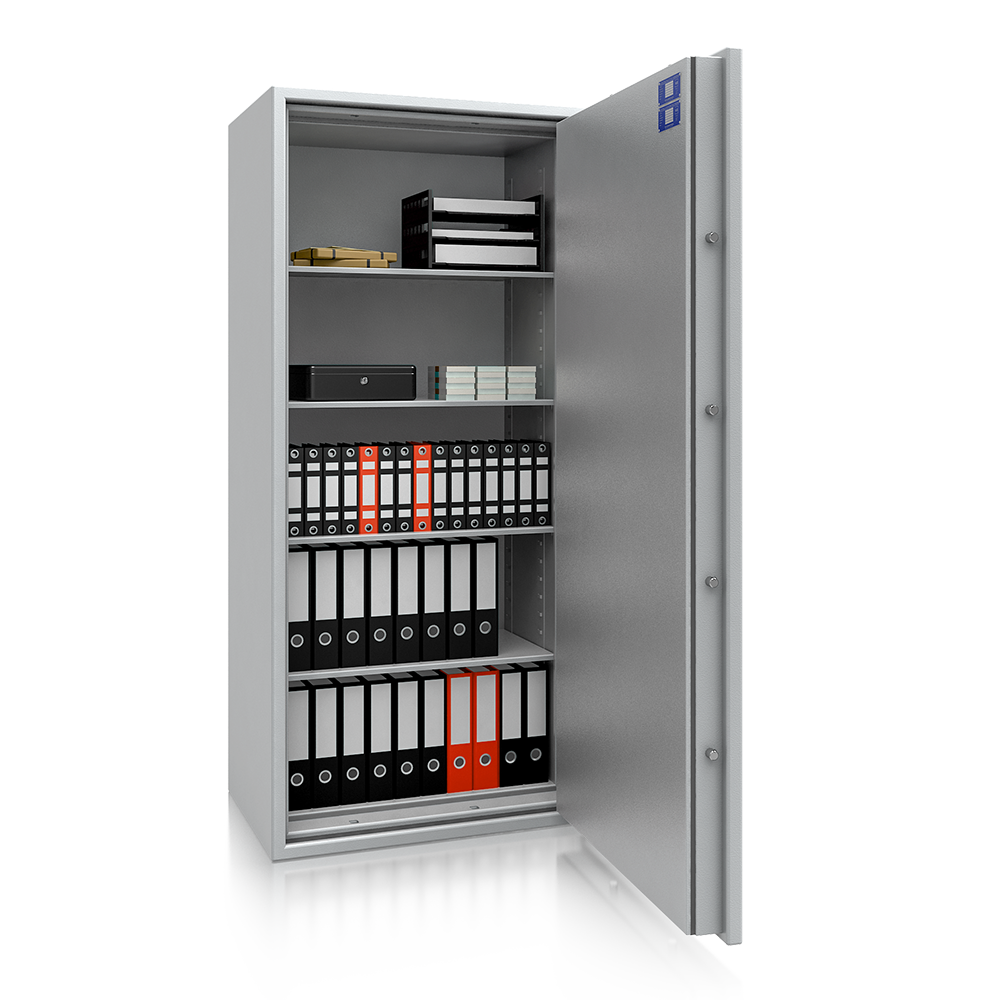

PEV 190 200582.00
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS
Fire resistant: S 60 P according to EN 1047-1 certified by VdS
Security level: Class II according to EN 1143-1 certified by VdS

Design:
Body: Multi-walled
Door: Multi-walled
Hinges: External
Door opening angle: 180°
Handle: Protruding 65 mm
Mounting holes: 1 bushing in the floor

Locking:
High security double-bit key lock
2 keys (120 mm)

Outer dimensions in mm
Outer dimensions in mm 1905 x 892 x 571
Inner dimensions in mm*
Inner dimensions in mm* 1766 x 756 x 393
Shelves
Shelves 4 pcs
File
File 50 pcs
Content
Content 524 l
Weight
Weight 765 kg
Send inquiry
Colour
Standard 7035
7035
Against surcharge Specialpainting RAL
Specialpainting RAL
Locks
Standard Double bit lock
Double bit lock
Against surcharge Mechanical combination lock
Mechanical combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Against surcharge Electronic combination lock
Electronic combination lock
Interior fittings
Against surcharge Inner safe
Inner safe
Against surcharge Additional shelf
Additional shelf
Other equipment
Against surcharge Door hinge left
Door hinge left
Against surcharge Suspension file on telescopic rails
Suspension file on telescopic rails
Against surcharge Shelf for hanging files
Shelf for hanging files
Against surcharge Special dowel for fixing in concrete floor B 25 Ø 12 mm
Special dowel for fixing in concrete floor B 25 Ø 12 mm
Downloads
207_datenblatt_PEV_EN
1,36 MB
Download
Back to top
Articles PEV
PEV 50
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 503 x 595 x 497 (HxBxT in mm)
Inner dimensions : 364 x 457 x 319 (HxBxT in mm)
Shelves: 1
Door: 1 Winged
Quantity folder: 6
Content (liter) : 53
Weight (kg): 186

PEV 63
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 635 x 595 x 497 (HxBxT in mm)
Inner dimensions : 496 x 457 x 319 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 8
Content (liter) : 72
Weight (kg): 230

PEV 82
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 822 x 595 x 497 (HxBxT in mm)
Inner dimensions : 683 x 457 x 319 (HxBxT in mm)
Shelves: 2
Door: 1 Winged
Quantity folder: 12
Content (liter) : 99
Weight (kg): 280

PEV 115
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1158 x 710 x 497 (HxBxT in mm)
Inner dimensions : 1019 x 572 x 319 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 21
Content (liter) : 185
Weight (kg): 420

PEV 134
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1343 x 710 x 497 (HxBxT in mm)
Inner dimensions : 1204 x 572 x 319 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 23
Content (liter) : 219
Weight (kg): 451

PEV 152
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1528 x 710 x 497 (HxBxT in mm)
Inner dimensions : 1389 x 572 x 319 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 28
Content (liter) : 253
Weight (kg): 520

PEV 158
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1589 x 892 x 571 (HxBxT in mm)
Inner dimensions : 1450 x 756 x 393 (HxBxT in mm)
Shelves: 3
Door: 1 Winged
Quantity folder: 42
Content (liter) : 430
Weight (kg): 655

PEV 173
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1739 x 892 x 571 (HxBxT in mm)
Inner dimensions : 1600 x 756 x 393 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 40
Content (liter) : 475
Weight (kg): 707

PEV 190
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1905 x 892 x 571 (HxBxT in mm)
Inner dimensions : 1766 x 756 x 393 (HxBxT in mm)
Shelves: 4
Door: 1 Winged
Quantity folder: 50
Content (liter) : 524
Weight (kg): 765

PEV 190/1
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1905 x 999 x 580 (HxBxT in mm)
Inner dimensions : 1766 x 863 x 392 (HxBxT in mm)
Shelves: 4
Door: 2 Winged
Quantity folder: 55
Content (liter) : 597
Weight (kg): 935

PEV 190/2
MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1905 x 1252 x 580 (HxBxT in mm)
Inner dimensions : 1766 x 1116 x 392 (HxBxT in mm)
Shelves: 4
Door: 2 Winged
Quantity folder: 70
Content (liter) : 772
Weight (kg): 1063

MS_pic_grad_II MS_pic_grad_S60P pic_logo_VDS

External dimensions: 1905 x 1288 x 580 (HxBxT in mm)
Inner dimensions : 1766 x 1152 x 392 (HxBxT in mm)
Shelves: 4
Door: 2 Winged
Quantity folder: 75
Content (liter) : 797
Weight (kg): 1082
